MVC500 medium room system
- Tech specs
MVC 500 medium room system
A room accommodating up to 11 people, a medium sized conferencing room is an enclosed space that is reserved for meetings. This setup is designed so that the camera will capture the faces and the microphone will pick up the voices off all the participants in a space as large as 4.5x6 meters.

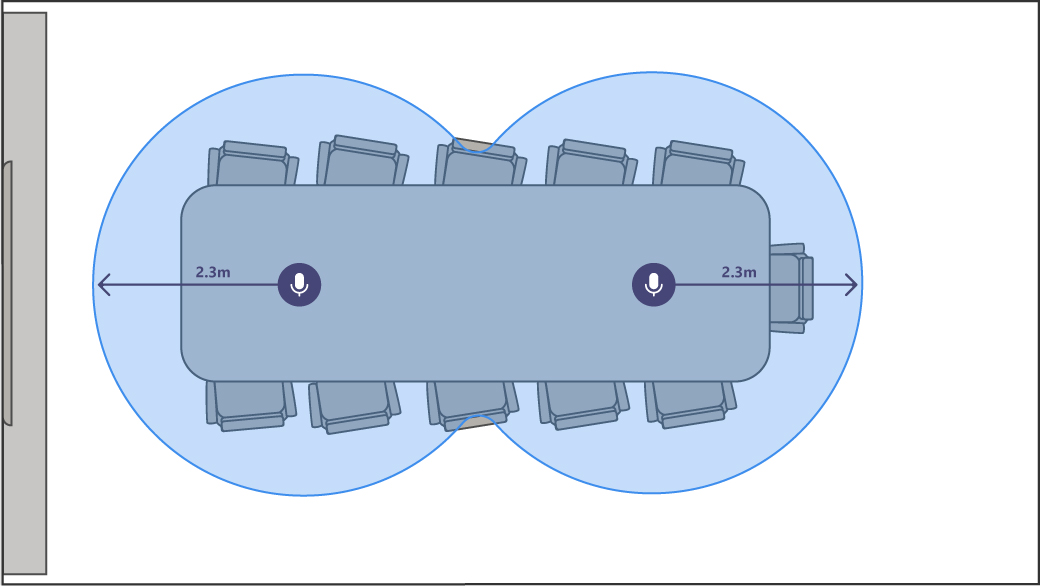

Meeting participants sit around a table where two microphones are extended so that they can pick up voices of participants sitting within a range of 2.3 meters.

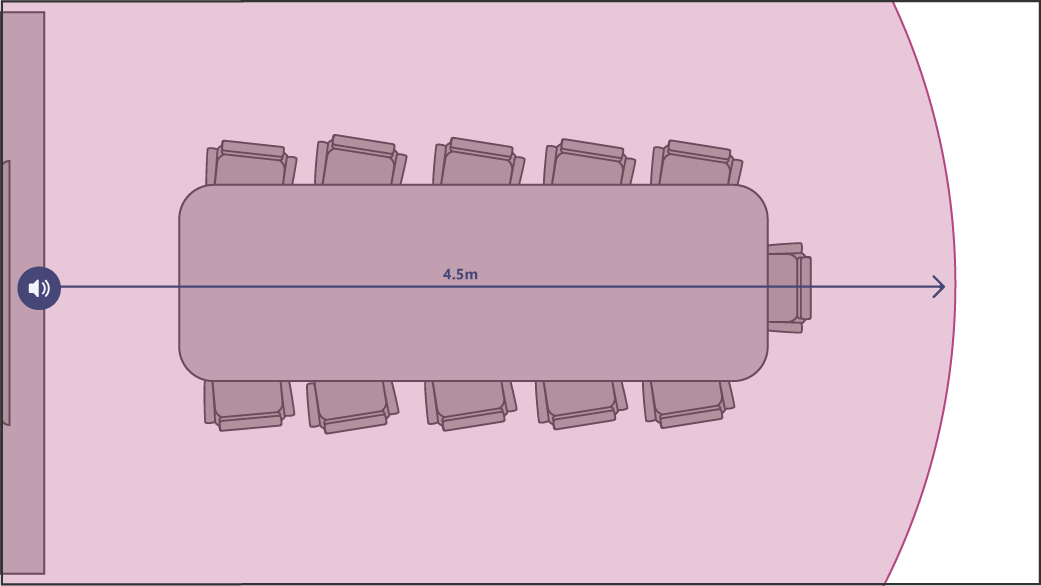

A loudspeaker is mounted to the wall or at the edge of a room and near the camera and display so that meeting audio projects to all listeners at a range of up to 4.5 meters.

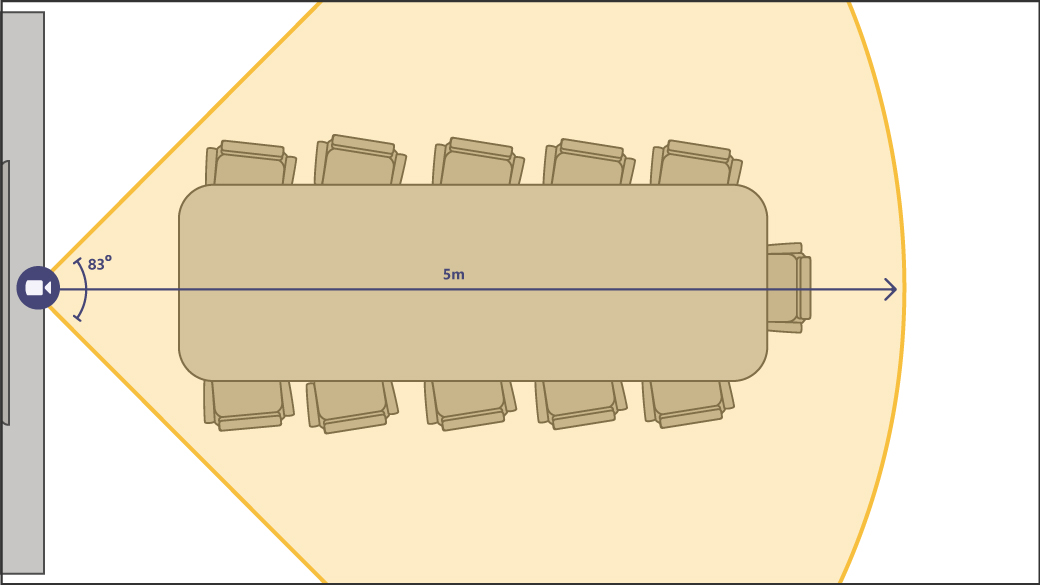

A camera is mounted at the edge of the room near a display. It is located within a range of approximately between 1 and 5 meters of meeting participants.

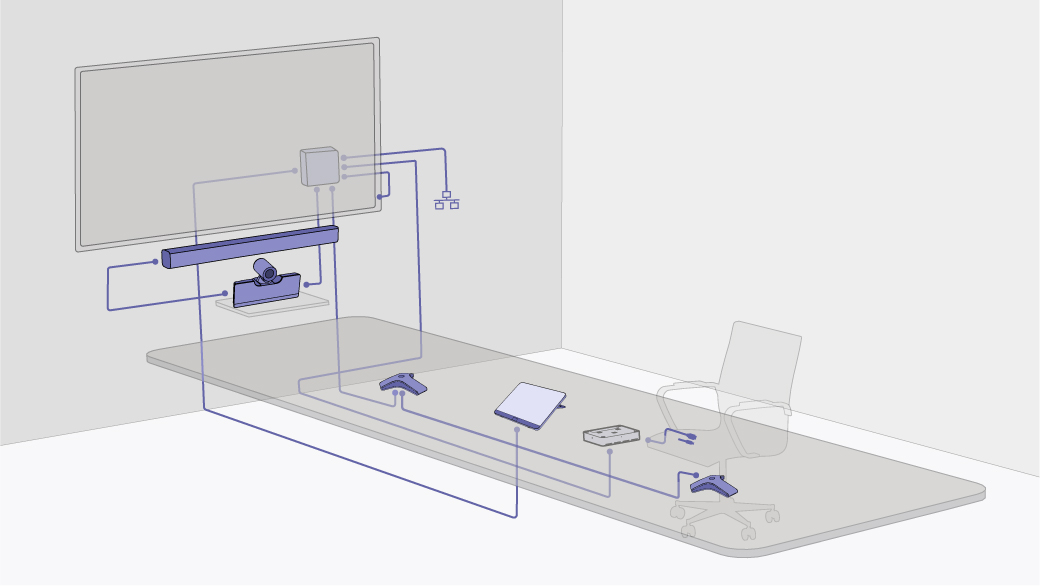

Cabling needs are an important, but often overlooked but important part of room system design. This cable layout details all the included the cables, connections, and paths necessary to connect all the components of together. The detail does not show the cable lengths to scale.
